Introduction

Heat Exchanger Cleaning System play a crucial role in industrial, commercial, and residential applications by transferring heat between fluids for heating, cooling, or energy recovery. They are widely used in industries such as HVAC, power generation, food processing, pharmaceuticals, petrochemicals, and refrigeration. However, over time, heat exchangers accumulate deposits such as scale, rust, oil residues, biological growth, and dirt, which can significantly reduce their efficiency. A dirty heat exchanger requires more energy to achieve the desired heat transfer, leading to increased operational costs and potential system failures. In extreme cases, neglected maintenance can result in overheating, pressure buildup, and even equipment breakdowns. This is why routine cleaning and maintenance are essential to ensure the optimal performance, longevity, and safety of heat exchangers. Cleaning a heat exchanger involves various techniques such as chemical cleaning, mechanical scrubbing, hydroblasting, ultrasonic cleaning, and backflushing. The choice of cleaning method depends on the type of contamination, the heat exchanger’s design, and industry regulations. Understanding the importance of regular cleaning, recognizing the signs of fouling, and selecting the most effective cleaning approach will help maintain peak efficiency and prevent costly repairs or downtime.

Why is Cleaning Heat Exchangers Important?

Prevents Fouling and Scaling

• Fouling occurs when unwanted materials like dirt, debris, or biofilms accumulate on heat exchanger surfaces, reducing heat transfer efficiency.

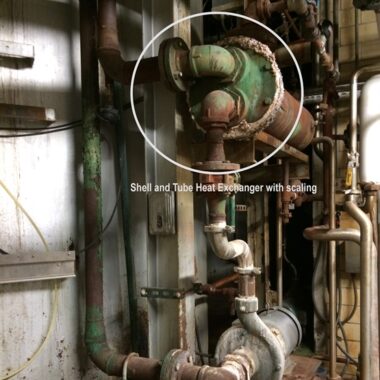

• Scaling results from mineral deposits such as calcium carbonate or magnesium, which form hard layers inside the tubes or plates, restricting fluid flow.

Enhances Energy Efficiency

• A clean heat exchanger allows maximum heat transfer, reducing energy consumption.

• A fouled heat exchanger can cause pressure drops and require higher pump speeds, leading to increased operational costs.

Extends Equipment Life

• Deposits such as scale and rust can cause corrosion and erosion, leading to premature failure.

• Regular cleaning prevents damage to critical components, reducing the need for costly replacements.

Ensures Compliance with Industry Regulations

• Many industries have strict guidelines on equipment efficiency and cleanliness, especially in food processing, pharmaceuticals, and chemical plants.

• Proper maintenance helps companies avoid penalties and ensures safe operation.

Types of Heat Exchanger Contaminants

1. Mineral Scale – Caused by hard water, forming calcium or magnesium deposits.

2. Rust and Corrosion – Formed due to oxidation in metal surfaces.

3. Oil and Grease – Often found in hydraulic and lubrication systems.

4. Biological Growth – Algae, bacteria, and mold can develop in humid conditions.

5. Debris and Dirt – Dust, sand, and particulates accumulate over time.

Heat Exchanger Cleaning System Methods

Different cleaning methods are used depending on the type of fouling, the heat exchanger design, and industry requirements. The five primary cleaning methods include:

Chemical Cleaning

• Uses cleaning agents to dissolve scale, rust, oil, and other deposits.

• Ideal for heat exchangers with internal fouling where mechanical access is limited.

Procedure:

1. Isolate the heat exchanger from the system.

2. Select an appropriate chemical solution (acidic for scale, alkaline for oil/grease).

3. Circulate the solution through the heat exchanger for a set duration.

4. Neutralize the chemicals and flush with clean water.

5. Inspect the system to ensure complete removal of contaminants.

Common Chemicals Used:

• Acidic Solutions (Hydrochloric acid, citric acid) – Removes mineral scale and rust.

• Alkaline Solutions (Sodium hydroxide, ammonia) – Removes oil, grease, and organic matter.

• Solvents (Degreasers, detergents) – Removes hydrocarbon-based fouling.

Best For:
✔ Heat exchangers with scaling and rust issues.
✔ Applications where mechanical cleaning is not feasible.

Mechanical Cleaning

• Involves physically removing deposits using brushes, scrapers, and other tools.

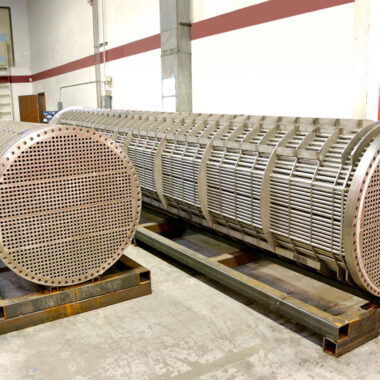

• Ideal for easily accessible areas such as shell and tube heat exchangers.

Procedure:

1. Dismantle the heat exchanger if necessary.

2. Use tube brushes or scrapers to remove deposits inside tubes.

3. Apply compressed air or water flushing to clear out debris.

4. Inspect for remaining fouling and reassemble the unit.

Common Tools Used:

• Rotary brushes

• Metal scrapers

• High-pressure air guns

Best For:
✔ Removing hardened deposits and rust.
✔ Systems with easily accessible components.

Hydroblasting (High-Pressure Water Jetting)

• Uses high-pressure water (up to 40,000 psi) to break down stubborn deposits.

• Does not require chemicals, making it an environmentally friendly method.

Procedure:

1. Insert specialized nozzles into the tubes or plates.

2. Adjust pressure levels based on fouling type.

3. Jet high-pressure water to remove buildup.

4. Flush the system with clean water.

Best For:
✔ Heavy scaling and corrosion.
✔ Tube heat exchangers with severe blockages.

Ultrasonic Cleaning

• Uses high-frequency sound waves in a cleaning solution to dislodge contaminants.

• Suitable for delicate or complex components where mechanical cleaning is not ideal.

Procedure:

1. Immerse the heat exchanger parts in an ultrasonic bath filled with a cleaning solution.

2. Activate the ultrasonic generator, allowing cavitation bubbles to remove fouling.

3. Rinse components thoroughly with clean water.

4. Dry and inspect for remaining debris.

Best For:
✔ Cleaning small, intricate parts.
✔ Delicate components prone to damage.

Backflushing

• Reverses the fluid flow to dislodge and flush out deposits.

• Effective for preventing clogging in heat exchanger tubes.

Procedure:

1. Connect the heat exchanger to a backflushing system.

2. Pump cleaning fluid in the reverse direction.

3. Monitor expelled debris until the system is clear.

4. Inspect for residual contamination.

Best For:
✔ Removing loose debris.
✔ Maintaining fluid flow efficiency in tubular exchangers.

Best Practices for Heat Exchanger Cleaning System

To ensure effective cleaning and prolong the life of a heat exchanger, follow these best practices:

Establish a Regular Cleaning Schedule

• Prevents excessive buildup of fouling and ensures consistent performance.

• Cleaning frequency depends on operating conditions and fluid properties.

Monitor Pressure Drops

• A sudden increase in pressure drop across the exchanger indicates fouling.

• Use pressure sensors to detect early signs of blockages.

Use Proper Cleaning Agents

• Select chemicals compatible with the heat exchanger material.

• Avoid aggressive acids that may corrode metal surfaces.

Inspect After Cleaning

• Conduct visual and performance inspections to ensure deposits are fully removed.

• Run efficiency tests to confirm optimal heat transfer.

Consider Automated Cleaning Systems

• Online cleaning systems use water, air, or chemical injection without system shutdown.

• Reduces labor costs and improves efficiency in large industrial applications.

Conclusion

Heat Exchanger Cleaning System is a critical aspect of industrial maintenance that directly impacts energy efficiency, equipment reliability, and operational costs. When heat exchangers are left uncleaned, deposits such as scale, rust, biofilms, and oil residues can reduce heat transfer efficiency, increase energy consumption, and cause pressure losses. In severe cases, fouling can lead to costly repairs, unexpected downtime, and potential safety hazards. By implementing a regular cleaning schedule and choosing the right cleaning method—whether chemical, mechanical, hydroblasting, ultrasonic, or backflushing—companies can ensure that their heat exchangers function optimally. Monitoring pressure drops, inspecting for contamination, and using appropriate cleaning agents help prevent fouling and extend the lifespan of heat exchangers. Investing in proactive maintenance and cleaning not only improves system efficiency but also reduces overall operational costs and ensures compliance with industry regulations. Whether used in power plants, food processing facilities, or HVAC systems, heat exchangers perform at their best when kept clean and well-maintained. A well-planned cleaning strategy will help businesses maximize their return on investment while ensuring reliable heat exchange processes.
